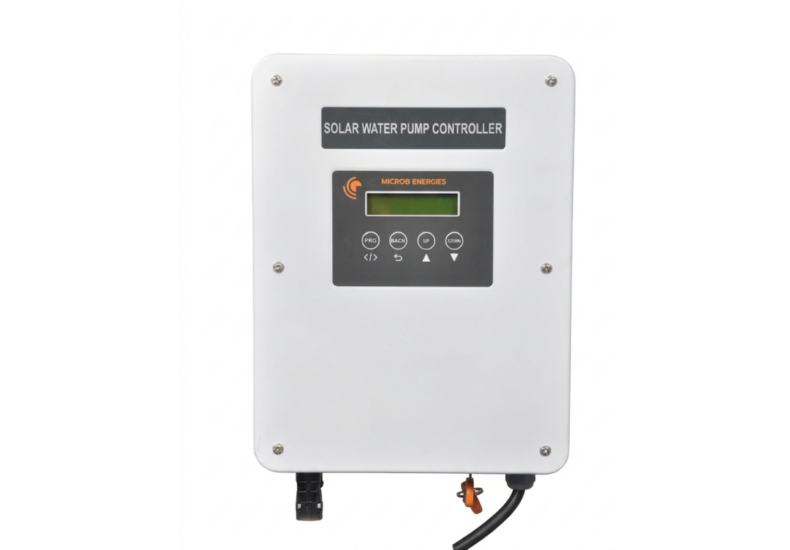

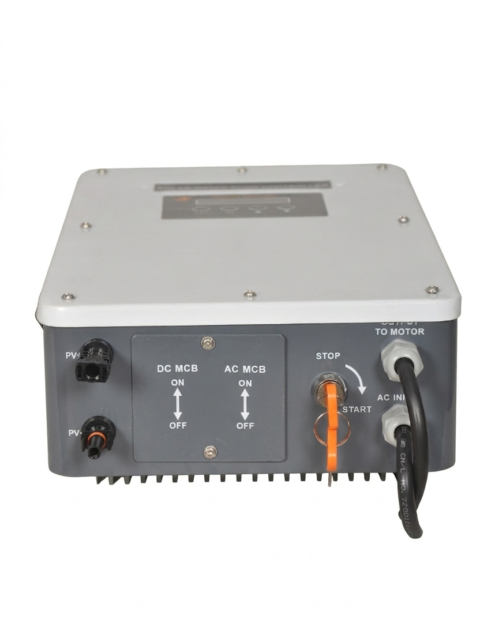

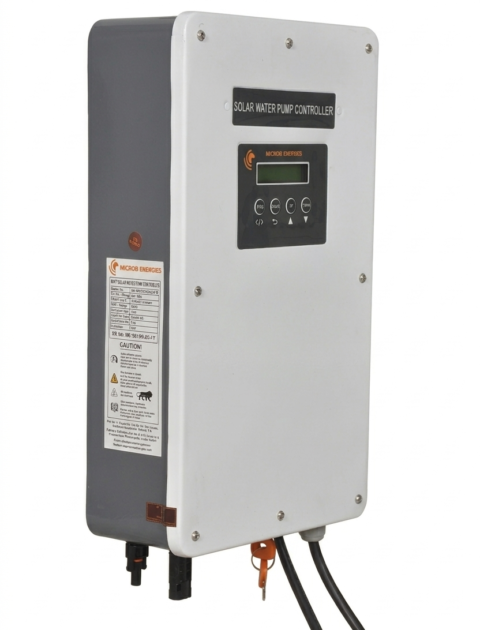

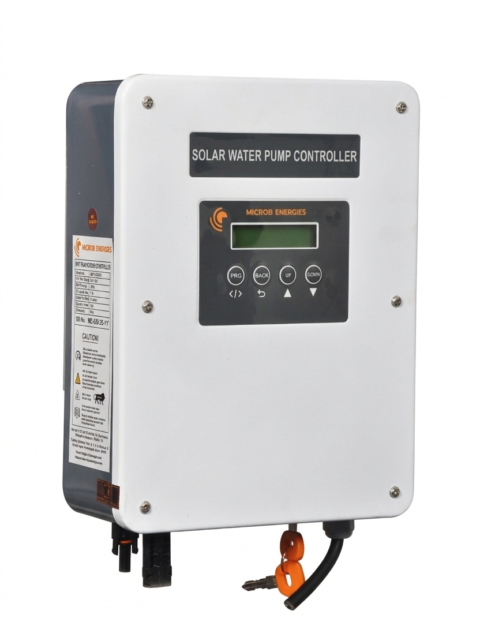

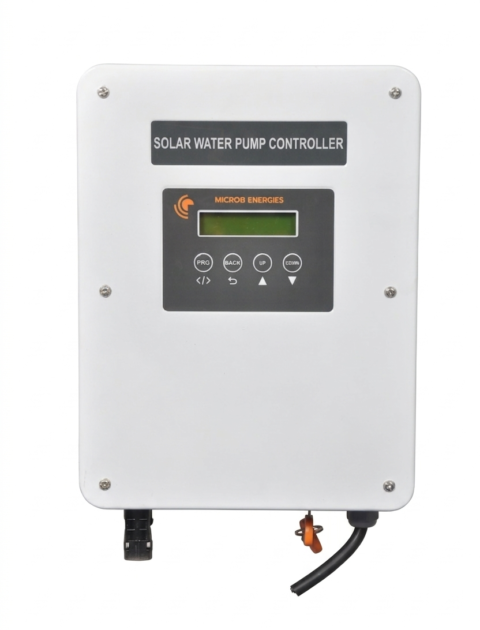

3HP Solar Water Inverter/Controller

The 3HP Solar Water Pump Inverter/Controller is designed for large-scale agricultural operations that require high water discharge and consistent performance. Powered entirely by solar energy, this system removes dependence on grid electricity and diesel pumps, helping farmers significantly reduce operational costs while ensuring reliable and uninterrupted irrigation.Equipped with advanced MPPT (Maximum Power Point Tracking) technology, the 3HP inverter maximizes energy efficiency by extracting optimal power from solar panels, even under varying sunlight conditions. It ensures stable motor operation, smooth acceleration, and enhanced durability, resulting in extended pump life and long-term performanceAdditionally, the 3HP Solar Pump Controller is built with intelligent protection features such as dry-run protection, overload safety, and voltage regulation to ensure safe and efficient operation in all conditions. Its user-friendly interface allows easy monitoring and control, making it suitable for both small and large farming applications.





3HP Solar Inverter/Controller Technical Specifications

A 3 HP (horsepower) solar inverter is designed to operate loads such as a 3 HP motor (≈2200–3300 W), commonly used for agricultural water pumps, borewell pumps, and high-capacity irrigation systems. It efficiently runs heavy-duty motors using solar power, reducing reliance on grid electricity and diesel generators, while ensuring reliable performance for larger irrigation needs.



3HP TECHNICAL SPECIFICATIONS

Specification Details
Power Rating 3 HP (2.2 kW)
Input Voltage DC 0 – 400V
Output Voltage 3-Phase 0 – 300V AC
Output Current 15A
Frequency Range 0.1 – 400 Hz
Control Method V/F, Sensorless Vector
Protection Overload, Short-circuit, Over-voltage, Under-voltage, Overheat
Enclosure IP65

3HP HYBRID TECHNICAL SPECIFICATIONS

Specification Details
Power Rating 3 HP (2.2 kW)
Input Voltage DC 0 – 400V / AC 240V
Output Voltage 3-Phase 0 – 300V AC
Output Current 15A
Frequency Range 0.1 – 400 Hz
Control Method V/F, Sensorless Vector
Protection Overload, Short-circuit, Over-voltage, Under-voltage, Overheat
Enclosure IP65
