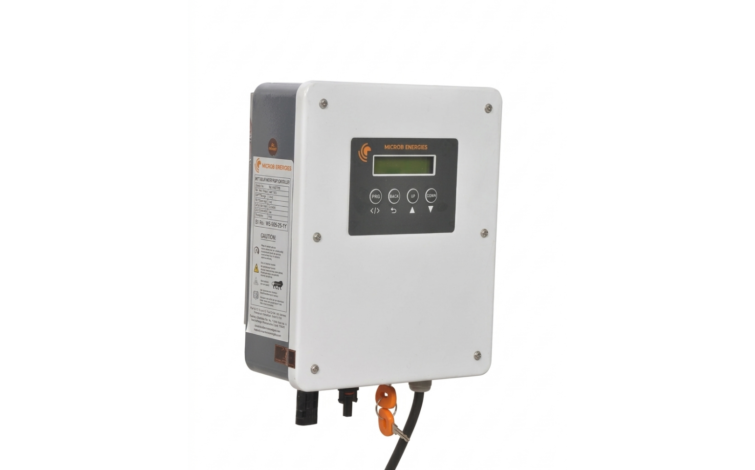

2HP Solar Water Inverter/Controller

The 2HP Solar Water Pump Inverter/Controller is an ideal solution for medium-sized agricultural lands that require higher water discharge for efficient irrigation. Fully powered by solar energy, it eliminates the need for grid electricity and diesel pumps, significantly reducing operational costs for farmers. This eco-friendly system ensures reliable performance while promoting sustainable farming practices.Equipped with advanced MPPT-based inverter technology, the system maximizes energy efficiency by extracting optimal power from solar panels even during varying sunlight conditions. It delivers consistent motor performance with smooth acceleration, reducing wear and tear and extending the overall lifespan of the pump



2HP Solar Inverter/Controller Technical Specifications

A 2 HP (horsepower) solar inverter is designed to operate loads such as a 2 HP motor (≈1500–2200 W), commonly used for agricultural water pumps, borewell pumps, and high-capacity irrigation systems. It efficiently runs heavy-duty motors using solar power, reducing dependence on grid electricity and diesel generators.



2HP TECHNICAL SPECIFICATIONS

Specification Details
Power Rating 2 HP (1.4 kW)
Input Voltage DC 0 – 220V
Output Voltage 2-Phase 0 – 160V AC
Output Current 15A
Frequency Range 0.1 – 400 Hz
Control Method V/F, Sensorless Vector
Protection Overload, Short-circuit, Over-voltage, Under-voltage, Overheat
Enclosure IP65

2HP HYBRID TECHNICAL SPECIFICATIONS

Specification Details
Power Rating 2 HP (1.4 kW)
Input Voltage DC 0 – 400V / AC 240V
Output Voltage 2-Phase 0 – 160V AC
Output Current 15A
Frequency Range 0.1 – 400 Hz
Control Method V/F, Sensorless Vector
Protection Overload, Short-circuit, Over-voltage, Under-voltage, Overheat
Enclosure IP65
